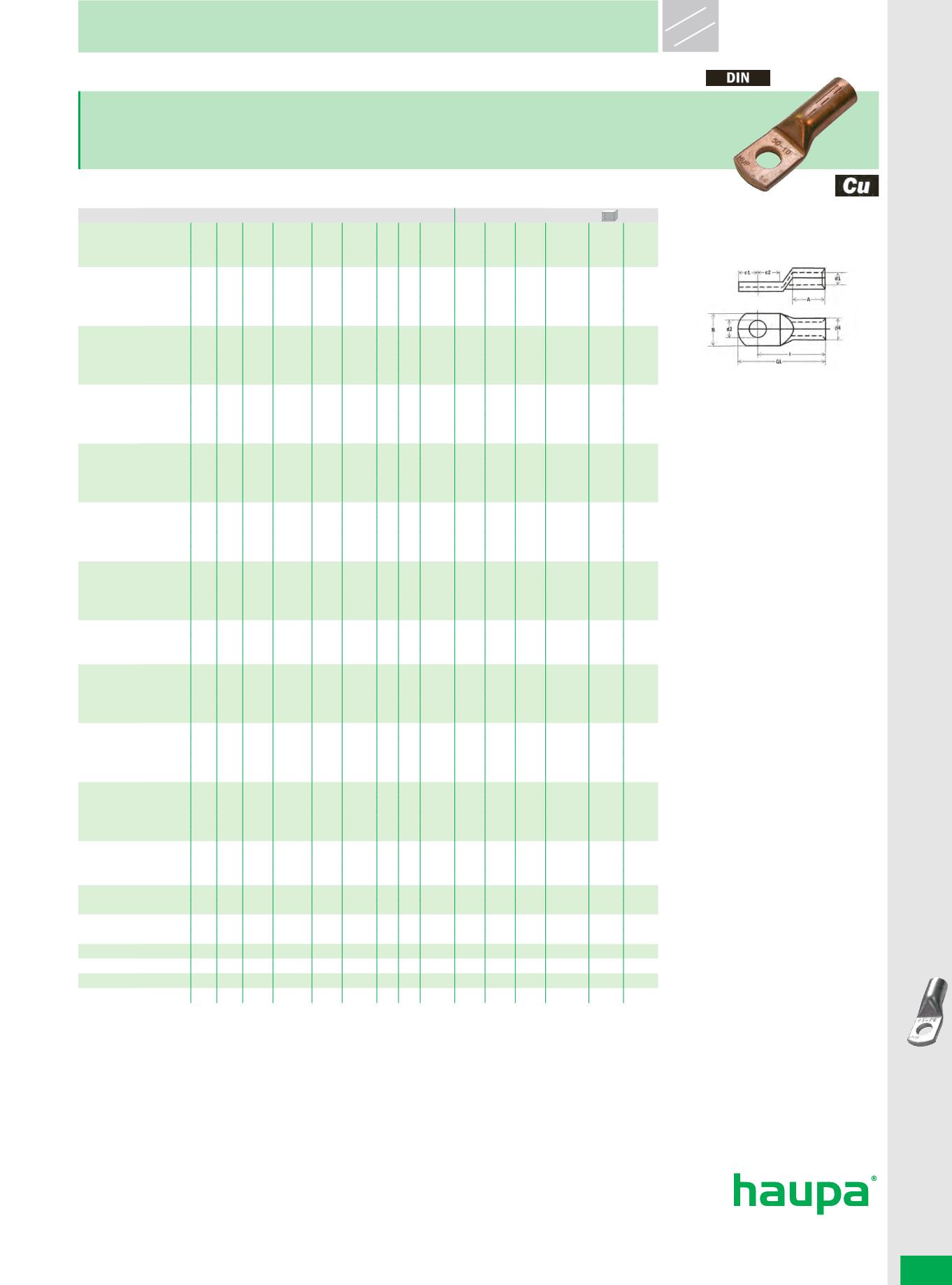

katalog_2017_pl - page 153

RoHS
149
HAUPA, Königstr. 165-169, 42853 Remscheid, Tel.: +49 (0)2191 8418-0, Fax: +49 (0)2191 8418-840,sales@haupa.com;
HAUPA POLSKA Sp. z o.o., ul. Norwida 11, PL 55-100 Trzebnica, Tel.: +48 713874813, Fax: +48 713874814,haupa@haupa.pl.
... rozwiązania, które przekonują
Końcówki rurkowe grubościenne
Końcówki rurkowe grubościenne DIN 46235
• materiał: 99,9% miedź elektrolityczna, materiał wyżarzony,
E-CU DIN 40500
• powierzchnia: błyszcząca wytrawiana
• znakowanie zacisku
Art. nr. kg/100 Oj
290001 0,300 800 100
290003 0,300 800 100
290005 0,300 800 100
Pp M Ni d2 d1 d4 A v1 v2 l c1 c2 B
6 5 5 5,3 3,8 5,5 10,0 2 - 24,0 6,5 7,5 8,5
6 5 6,4 3,8 5,5 10,0 2 - 24,0 7,5 8,0 8,5
8 5 8,4 3,8 5,5 10,0 2 - 24,0 10,0 10,0 13,0
290007 0,700 800 100
290011 0,600 800 100
290013 0,300 800 100
290015 0,500 800 100
10 5 6 5,3 4,5 6,0 10,0 2 - 27,0 7,0 8,5 9,0
6 6 6,4 4,5 6,0 10,0 2 - 27,0 7,5 8,5 9,0
8 6 8,4 4,5 6,0 10,0 2 - 27,0 10,0 10,0 13,0
10 6 10,5 4,5 6,0 10,0 2 - 28,0 10,0 10,0 15,0
290019 1,100 500 50
290021 1,100 400 50
290025 1,200 400 50
290027 1,200 400 50
16 6 8 6,4 5,5 8,5 20,0 2 1 36,0 7,5 8,0 13,0
8 8 8,4 5,5 8,5 20,0 2 1 36,0 10,0 10,0 13,0
10 8 10,5 5,5 8,5 20,0 2 1 36,0 12,0 12,0 17,0
12 8 13,0 5,5 8,5 20,0 2 1 36,0 13,0 13,0 18,0
290031 1,300 300 50
290033 1,400 300 50
290035 1,600 300 50
290037 1,400 300 50
25 6 10 6,4 7,0 10,0 20,0 2 1 38,0 7,5 8,0 14,0
8 10 8,4 7,0 10,0 20,0 2 1 38,0 10,0 10,0 16,0
10 10 10,5 7,0 10,0 20,0 2 1 38,0 12,0 12,0 17,0
12 10 13,0 7,0 10,0 20,0 2 1 38,0 13,0 13,0 19,0
290039 2,700 150 25
290042 2,900 150 15
290044 3,000 150 25
290049 2,800 150 25
35 6 12 6,4 8,2 12,5 20,0 2 1 42,0 7,5 8,0 17,0
8 12 8,4 8,2 12,5 20,0 2 1 42,0 10,0 10,0 17,0
10 12 10,5 8,2 12,5 20,0 2 1 42,0 12,0 12,0 19,0
12 12 13,0 8,2 12,5 20,0 2 1 42,0 13,0 13,0 21,0
290050 4,500 100 25
290051 4,400 100 25
290052 4,400 100 25
290053 4,300 100 20
50 8 14 8,4 10,0 14,5 28,0 3 1 52,0 10,0 10,0 20,0
10 14 10,5 10,0 14,5 28,0 3 1 52,0 12,0 12,0 22,0
12 14 13,0 10,0 14,5 28,0 3 1 52,0 13,0 13,0 24,0
16 14 17,0 10,0 14,5 28,0 3 1 52,0 16,0 16,0 28,0
290054 5,900 100 25
290055 6,000 100 25
290056 5,300 100 25
290057 5,600 80 20
70 8 16 8,4 11,5 16,5 28,0 3 1 55,0 10,0 10,0 24,0
10 16 10,5 11,5 16,5 28,0 3 1 55,0 12,0 12,0 24,0
12 16 13,0 11,5 16,5 28,0 3 1 55,0 13,0 13,0 24,0
16 16 17,0 11,5 16,5 28,0 3 1 55,0 16,0 16,0 30,0
290058 8,900 60 15
290059 8,500 60 15
290060 8,700 60 15
95 10 18 10,5 13,5 19,0 35,0 4 2 65,0 12,0 12,0 28,0
12 18 13,0 13,5 19,0 35,0 4 2 65,0 13,0 13,0 28,0
16 18 17,0 13,5 19,0 35,0 4 2 65,0 16,0 16,0 32,0
290061 11,100 40 20
290063 11,000 40 20
290064 10,600 40 20
290065 11,100 30 20
120 10 20 10,5 15,5 21,0 35,0 4 2 70,0 15,0 16,0 32,0
12 20 13,0 15,5 21,0 35,0 4 2 70,0 16,0 17,0 32,0
16 20 17,0 15,5 21,0 35,0 4 2 70,0 19,0 20,0 32,0
20 20 21,0 15,5 21,0 35,0 4 2 70,0 21,0 22,0 38,0
290066 15,800 30 15
290067 15,600 30 15
290068 15,700 30 15
290069 15,800 24 12
150 10 22 10,5 17,0 23,5 35,0 4 2 78,0 15,0 16,0 34,0
12 22 13,0 17,0 23,5 35,0 4 2 78,0 16,0 17,0 34,0
16 22 17,0 17,0 23,5 35,0 4 2 78,0 19,0 20,0 34,0
20 22 21,0 17,0 23,5 35,0 4 2 78,0 21,0 22,0 40,0
290070 17,200 24 10
290071 18,300 24 10
290072 17,700 24 10
290073 18,900 20 10
185 10 25 10,5 19,0 25,5 40,0 4 2 82,0 15,0 16,0 37,0
12 25 13,0 19,0 25,5 40,0 4 2 82,0 16,0 17,0 37,0
16 25 17,0 19,0 25,5 40,0 4 2 82,0 19,0 20,0 37,0
20 25 21,0 19,0 25,5 40,0 4 2 82,0 21,0 22,0 40,0
290074 26,400 16 8
290075 26,900 16 8
290076 26,900 16 8
240 12 28 13,0 21,5 29,0 40,0 5 2 92,0 16,0 17,0 42,0
16 28 17,0 21,5 29,0 40,0 5 2 92,0 19,0 20,0 42,0
20 28 21,0 21,5 29,0 40,0 5 2 92,0 21,0 22,0 45,0
290077 33,000 8 4
290078 33,000 8 4
300 16 32 17,0 24,5 32,0 50,0 - 2 100,0 19,0 22,0 46,0
20 32 21,0 24,5 32,0 50,0 - 2 100,0 19,0 22,0 46,0
290079 70,200 6 6
290080 45,100 6 6
400 16 38 17,0 27,5 38,5 70,0 - 3 115,0 25,0 25,0 55,0
20 38 21,0 27,5 38,5 70,0 - 3 115,0 25,0 25,0 54,0
290081 76,600 6 6 500 20 42 21,0 31,0 42,0 70,0 - 3 125,0 25,0 25,0 60,0
290082 78,000 1 1 625 20 44 21,0 34,5 44,0 80,0 - 3 125,0 25,0 25,0 64,0
290083 148,600 1 1 800 20 52 21,0 40,0 52,0 100,0 - 3 165,0 30,0 30,0 75,0
290084 195,200 1 1 1000 20 58 21,0 44,0 58,0 100,0 - 3 165,0 30,0 30,0 83,0
